Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) DFN8x8

Product Introduction: Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) DFN8x8

Overview

The Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) in the DFN8x8 package represents a state-of-the-art solution in semiconductor technology, specifically designed for high-voltage and high-power applications. Utilizing super junction technology, this MOSFET offers exceptional performance with reduced on-resistance, improved efficiency, and enhanced thermal management. The DFN8x8 package provides a compact, robust design that is ideal for applications where both space and performance are critical.

Key Features

1. High Efficiency: The super junction design of the MOSFET significantly lowers on-resistance (R_DS(on)), which reduces conduction losses and improves efficiency in power conversion applications.
2. Enhanced Thermal Performance: The DFN8x8 package is designed for effective heat dissipation, allowing the MOSFET to operate reliably under high current and voltage conditions.
3. High Voltage Capability: This MOSFET is engineered to handle high voltages, making it suitable for demanding applications such as power supplies, inverters, and motor drives.
4. Compact Package: The DFN8x8 package offers a compact footprint while maintaining high performance, making it ideal for applications where space is limited.
5. Robust Design: The DFN8x8 package ensures mechanical stability and durability, providing reliable performance even in harsh environments.

Applications

1. Power Supplies: Ideal for use in switch-mode power supplies (SMPS) where efficiency and thermal management are crucial. The high voltage and current handling capabilities make it suitable for both industrial and consumer power supply applications.
2. Inverters: Perfect for use in renewable energy systems such as solar and wind power inverters, where high voltage and efficiency are essential for optimal performance.
3. Motor Drives: Suitable for motor control circuits, offering precise control and high efficiency in industrial and automotive applications. The compact and robust design of the DFN8x8 package is well-suited for these demanding environments.
4. Telecommunications: Enhances performance in telecom power systems by providing reliable high-voltage operation and stable power management for communication infrastructure.
5. Consumer Electronics: Useful in various consumer electronics applications that require efficient power management and high reliability within a compact form factor.

Technical Specifications

• Voltage Rating: Capable of handling high voltages up to 600V.
• Current Rating: Designed to operate at high currents up to 25A.
• On-Resistance: Low R_DS(on) values ranging from 20mΩ to 80mΩ.

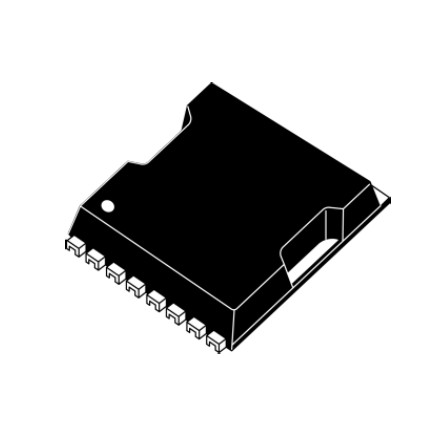

• Package Type: DFN8x8, offering a compact, efficient design with excellent thermal management.

Advantages

1. Reduced Energy Loss: Lower on-resistance results in reduced energy loss during operation, making it an efficient choice for high-power applications.
2. Improved Reliability: Enhanced thermal performance ensures longer device life and reliable operation under high-stress conditions.
3. Compact Design: The DFN8x8 package allows for a smaller footprint while maintaining high performance, which is ideal for space-constrained designs.
4. Robust Performance: The DFN8x8 package provides mechanical stability and robustness, ensuring reliable operation even in demanding environments.

Conclusion

The Super Junction MOSFET in the DFN8x8 package is a high-performance component designed to meet the rigorous demands of modern high-voltage and high-power applications. With its exceptional efficiency, compact design, and advanced thermal management, it is an excellent choice for a wide range of applications, from industrial motor drives to renewable energy systems. The DFN8x8 package ensures reliable and efficient performance, making it a valuable component for power electronics solutions. By integrating this advanced MOSFET technology, designers can achieve higher efficiency, improved reliability, and superior performance in their applications.
