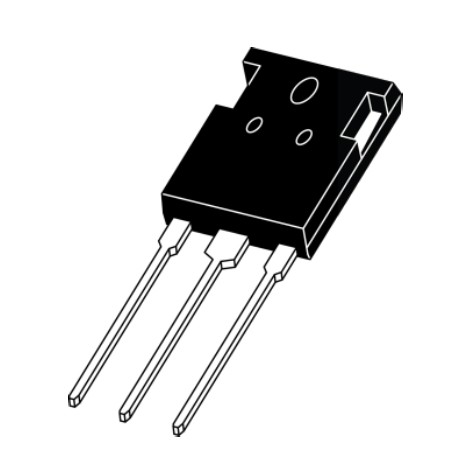

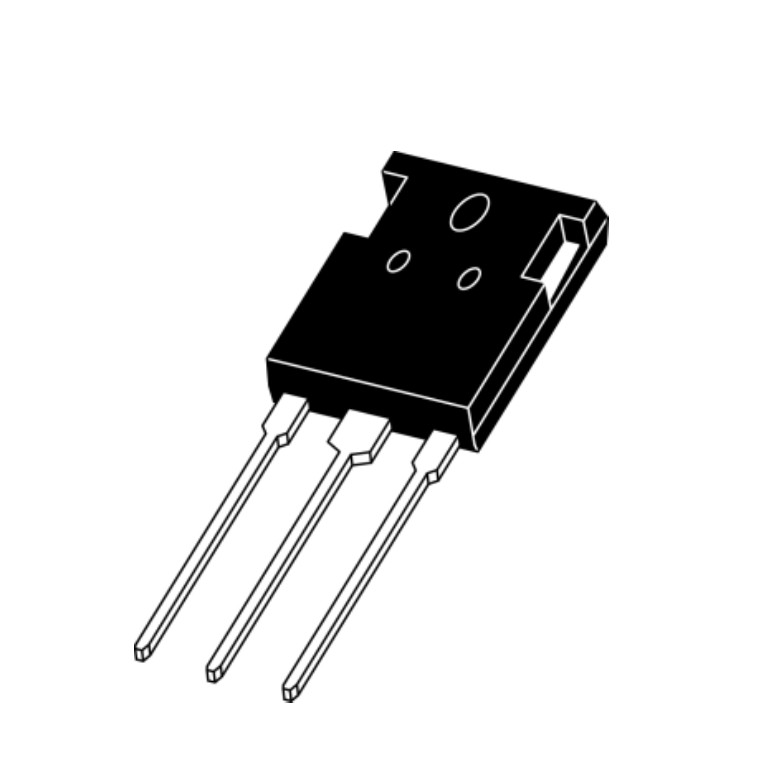

Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) TO-247

Product Introduction: Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) TO-247

Overview

The Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) in TO-247 package represents a significant advancement in semiconductor technology, specifically designed for high-voltage and high-power applications. This innovative MOSFET technology offers superior efficiency, reduced on-resistance, and improved thermal performance compared to conventional MOSFETs, making it an ideal choice for demanding applications.

Key Features

1. High Efficiency: The super junction structure significantly reduces on-resistance (R_DS(on)), resulting in lower conduction losses and higher efficiency in power conversion applications.
2. Enhanced Thermal Performance: The advanced design of the TO-247 package allows for excellent heat dissipation, enabling the MOSFET to operate at higher currents and voltages without compromising reliability.
3. High Voltage Capability: This MOSFET is designed to handle high voltages, making it suitable for applications such as power supplies, inverters, and motor drives.
4. Robust Design: The TO-247 package provides excellent mechanical stability and robustness, ensuring reliable performance in demanding environments.

Applications

1. Power Supplies: Ideal for use in switch-mode power supplies (SMPS) where efficiency and thermal performance are critical. The high voltage and current handling capabilities make it perfect for industrial power supply applications.
2. Inverters: Suitable for inverters in renewable energy systems, such as solar and wind power, where high voltage and efficiency are essential for optimal performance.
3. Motor Drives: Used in motor control circuits, offering precise control and efficiency in industrial and automotive applications. The high current capability and robustness of the TO-247 package make it ideal for these demanding applications.
4. Telecommunications: Enhances performance in telecom power systems by providing reliable high-voltage operation, ensuring stable and efficient power management in communication infrastructure.

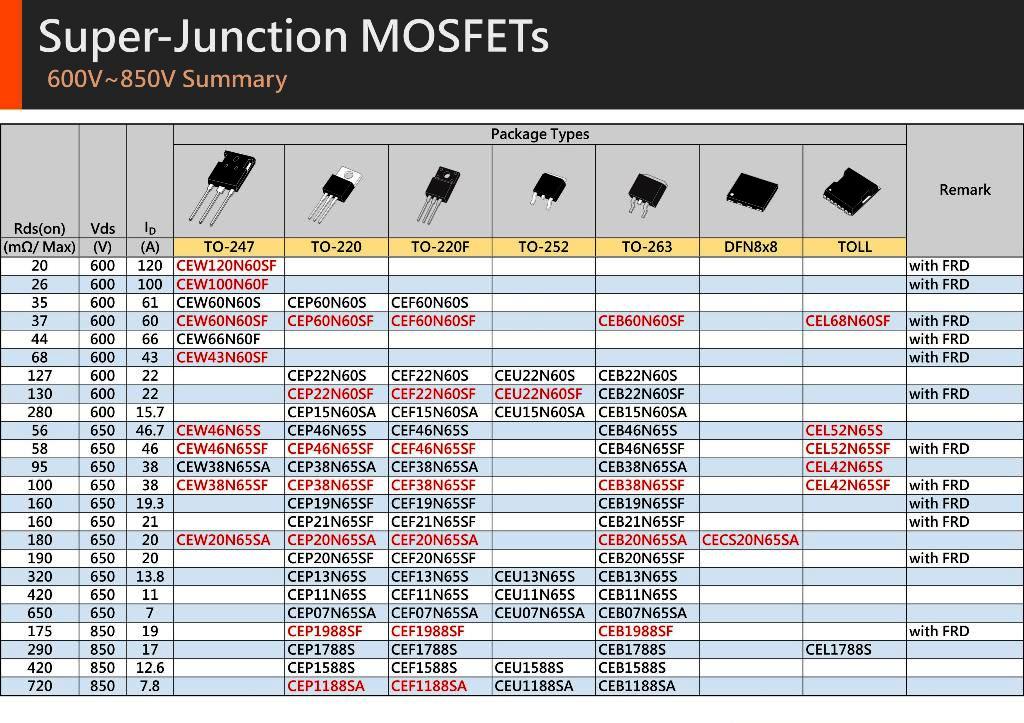

Technical Specifications

• Voltage Rating: Capable of handling high voltages up to 1200V.
• Current Rating: Can operate at high currents up to 100A.
• On-Resistance: Low R_DS(on) values ranging from 5mΩ to 40mΩ.
• Package Type: TO-247, offering robust thermal management and ease of integration into various circuit designs.

Advantages

1. Reduced Energy Loss: Lower on-resistance translates to reduced energy loss during operation, making it an energy-efficient choice for high-power applications.
2. Improved Reliability: Enhanced thermal performance ensures longer device life and reliability, even under strenuous operating conditions.
3. Compact Design: The TO-247 package allows for a compact and efficient layout, saving space in circuit designs and enabling more flexible design options.

Conclusion

The Super Junction MOSFET in TO-247 package is a versatile and high-performance component, engineered to meet the demands of modern high-voltage and high-power applications. Its superior efficiency, robust design, and advanced thermal management make it an ideal choice for a wide range of applications, from industrial motor drives to renewable energy systems. By integrating this advanced MOSFET technology, designers can achieve higher efficiency, better reliability, and superior performance in their power electronics solutions. The TO-247 package ensures that the device can handle high currents and voltages, making it a reliable and efficient choice for the most demanding applications.
