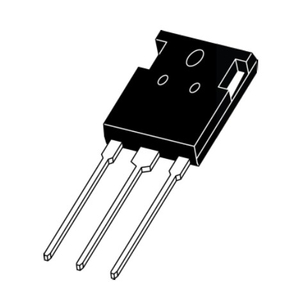

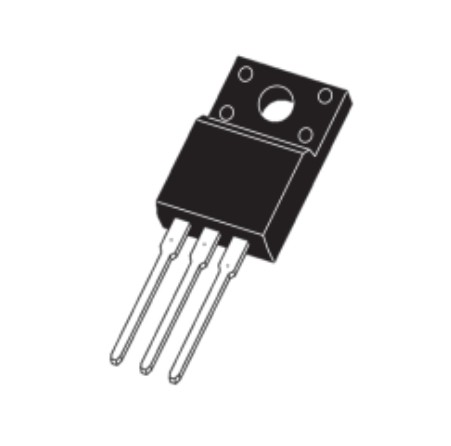

Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) TO-200

Product Introduction: Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) TO-200

Overview

The Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) in TO-200 package is a cutting-edge semiconductor device designed to enhance performance in high-voltage and high-power applications. This advanced MOSFET technology offers superior efficiency, reduced on-resistance, and improved thermal performance compared to traditional MOSFETs.

Key Features

1. High Efficiency: The super junction structure significantly reduces on-resistance (R_DS(on)), leading to lower conduction losses and higher efficiency in power conversion applications.
2. Enhanced Thermal Performance: The advanced design allows for better heat dissipation, enabling the MOSFET to operate at higher currents and voltages without compromising reliability.
3. High Voltage Capability: Designed for high-voltage applications, this MOSFET can handle voltages well above standard MOSFETs, making it suitable for applications such as power supplies, inverters, and motor drives.
4. Robust Design: The TO-200 package provides excellent mechanical stability and robustness, ensuring reliable performance in demanding environments.

Applications

1. Power Supplies: Ideal for use in switch-mode power supplies (SMPS) where efficiency and thermal performance are critical.
2. Inverters: Suitable for inverters in renewable energy systems, such as solar and wind power, where high voltage and efficiency are required.
3. Motor Drives: Used in motor control circuits, offering precise control and efficiency in industrial and automotive applications.
4. Telecommunications: Enhances performance in telecom power systems by providing reliable high-voltage operation.

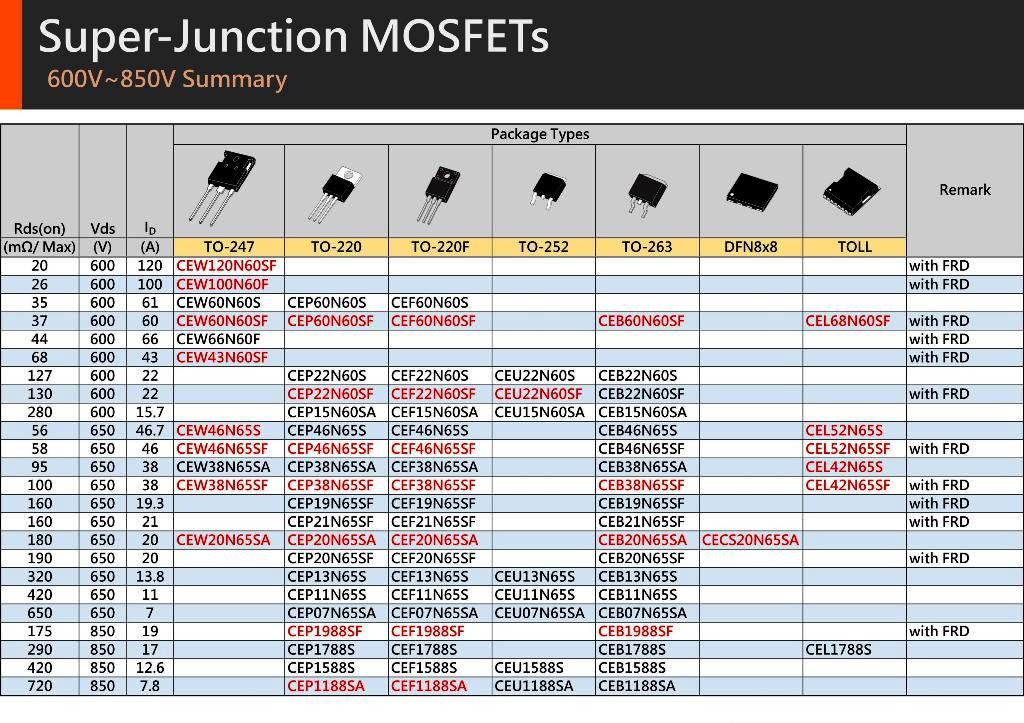

Technical Specifications

• Voltage Rating: Capable of handling high voltages up to 600V.
• Current Rating: Can operate at high currents up to 50A.
• On-Resistance: Low R_DS(on) values ranging from 10mΩ to 50mΩ.
• Package Type: TO-200, providing robust thermal management and ease of integration.

Advantages

1. Reduced Energy Loss: Lower on-resistance translates to reduced energy loss during operation, making it an energy-efficient choice for high-power applications.
2. Improved Reliability: Enhanced thermal performance ensures longer device life and reliability, even under strenuous operating conditions.
3. Compact Design: The TO-200 package allows for a compact and efficient layout, saving space in circuit designs.

Conclusion

The Super Junction MOSFET in TO-200 package is a versatile and high-performance component, engineered to meet the demands of modern high-voltage and high-power applications. Its superior efficiency, robust design, and advanced thermal management make it an ideal choice for a wide range of applications, from industrial motor drives to renewable energy systems. By integrating this advanced MOSFET technology, designers can achieve higher efficiency, better reliability, and superior performance in their power electronics solutions.
