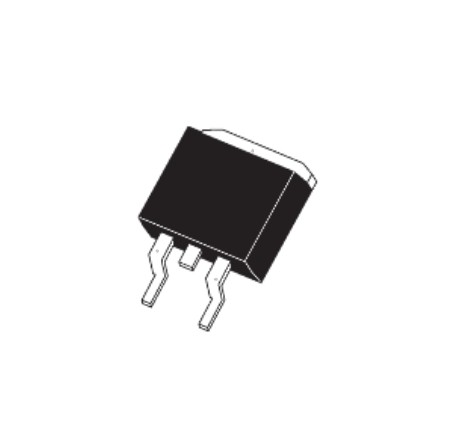

Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) TO-263

Product Introduction: Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) TO-263

Overview

The Super Junction Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) in the TO-263 package is a cutting-edge semiconductor component designed for high-voltage and high-power applications. This advanced MOSFET utilizes super junction technology to offer exceptional efficiency, reduced on-resistance, and superior thermal performance compared to traditional MOSFETs. The TO-263 package provides a compact form factor with enhanced thermal management, making it an excellent choice for space-constrained applications.

Key Features

1. High Efficiency: The super junction design significantly lowers on-resistance (R_DS(on)), which reduces conduction losses and enhances efficiency in power conversion systems.
2. Superior Thermal Performance: The TO-263 package includes features that allow for effective heat dissipation, enabling the MOSFET to operate reliably at higher currents and voltages.
3. High Voltage Capability: Capable of handling high voltages, this MOSFET is ideal for demanding applications such as power supplies, inverters, and motor drives.
4. Compact Package: The TO-263 package offers a compact and efficient design, making it suitable for applications where space is limited while still requiring robust performance.
5. Robust Design: The TO-263 package ensures mechanical stability and durability, providing reliable performance even in challenging operating environments.

Applications

1. Power Supplies: Perfect for use in switch-mode power supplies (SMPS) where high efficiency and thermal performance are critical. Its high voltage and current capabilities make it suitable for industrial and consumer power supply applications.
2. Inverters: Ideal for renewable energy systems, including solar and wind power inverters, where high voltage and efficiency are essential for optimal system performance.
3. Motor Drives: Suitable for motor control circuits, offering precise control and high efficiency in both industrial and automotive applications. The TO-263 package’s compact size and robust design make it suitable for these demanding uses.
4. Telecommunications: Enhances the performance of telecom power systems by providing reliable high-voltage operation and ensuring stable power management for communication infrastructure.
5. Consumer Electronics: Useful in various consumer electronics applications that require efficient power management and high reliability in a compact form factor.

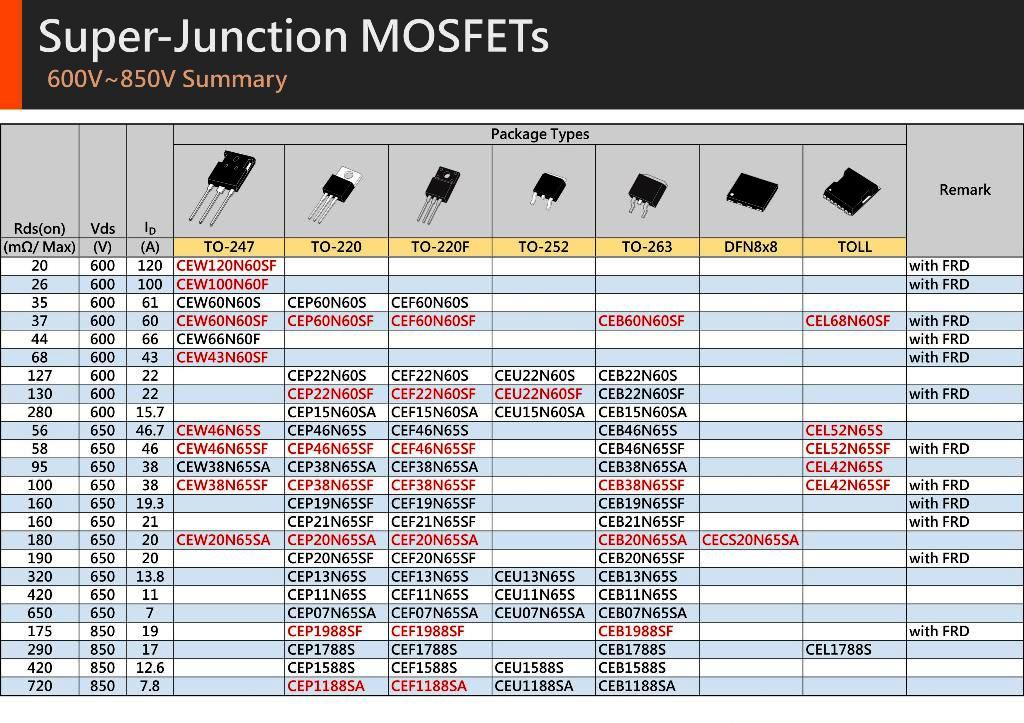

Technical Specifications

• Voltage Rating: Capable of handling high voltages up to 600V.
• Current Rating: Designed to operate at high currents up to 20A.
• On-Resistance: Low R_DS(on) values ranging from 30mΩ to 150mΩ.
• Package Type: TO-263, offering a compact, efficient design with effective thermal management.

Advantages

1. Reduced Energy Loss: Lower on-resistance leads to reduced energy loss during operation, making it an efficient choice for high-power applications.
2. Improved Reliability: Enhanced thermal performance ensures longer device life and reliable operation under high-stress conditions.
3. Compact and Efficient Design: The TO-263 package allows for a smaller footprint while maintaining high performance, making it ideal for space-constrained designs.
4. Robust Performance: The TO-263 package provides mechanical stability and robustness, ensuring reliable performance even in demanding environments.

Conclusion

The Super Junction MOSFET in the TO-263 package is a high-performance component designed to meet the needs of modern high-voltage and high-power applications. With its exceptional efficiency, compact design, and advanced thermal management, it is an excellent choice for a wide range of applications, from industrial motor drives to renewable energy systems. The TO-263 package ensures reliable and efficient performance, making it a valuable component for power electronics solutions. Integrating this advanced MOSFET technology enables designers to achieve higher efficiency, improved reliability, and superior performance in their applications.
